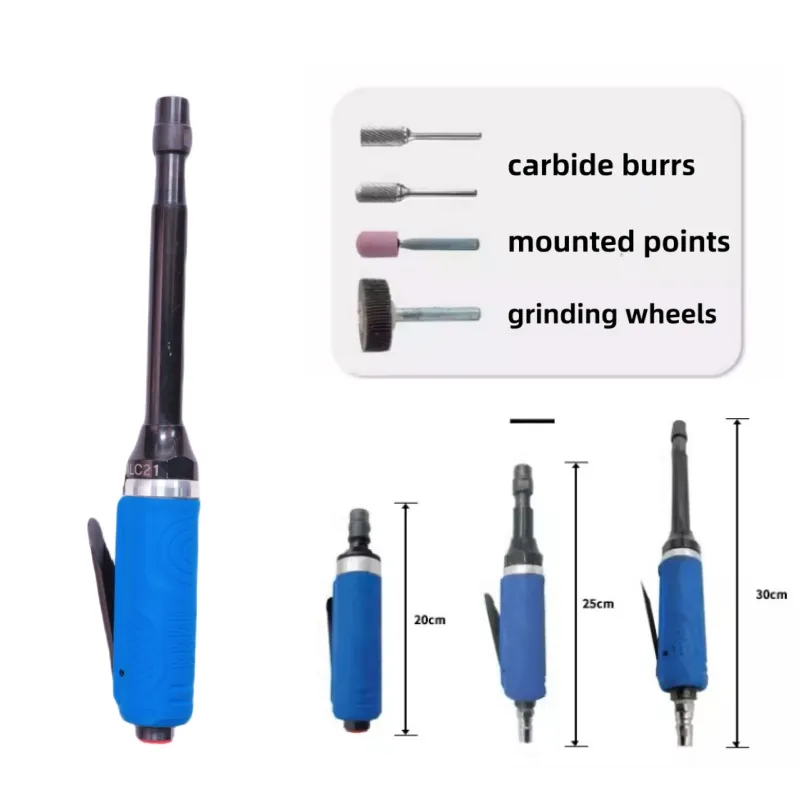

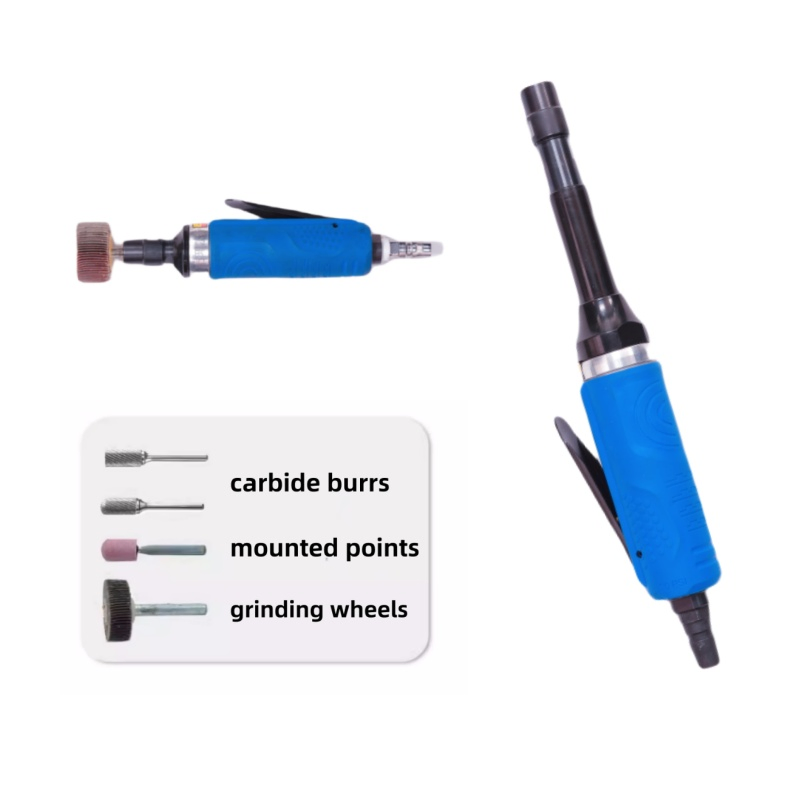

Pneumatic Straight Die Grinder Air Grinding Tool Polishing Sander Machine Power Tools

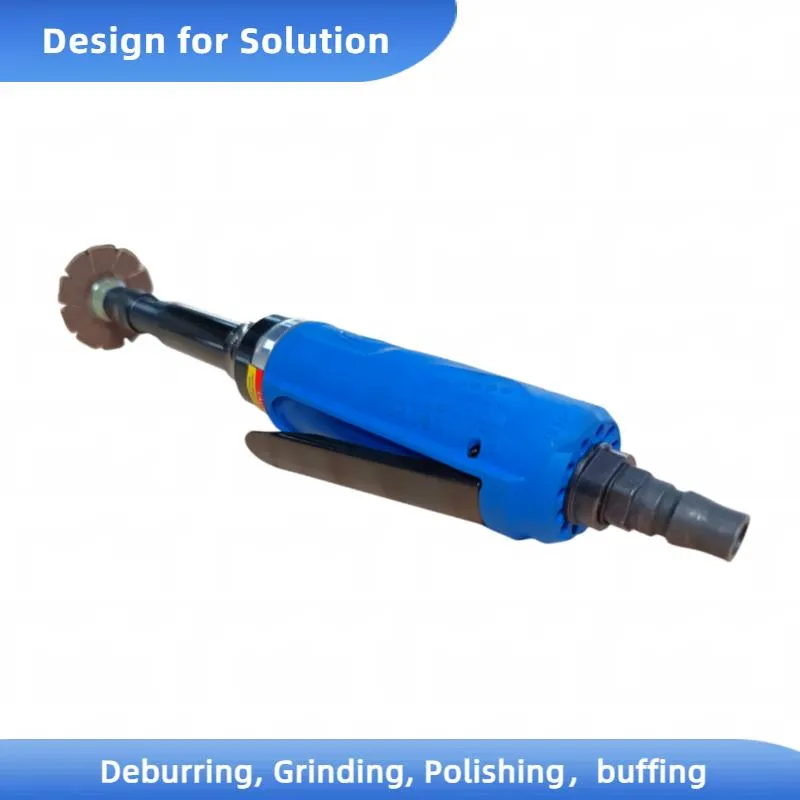

Extended Spindle Straight Grinder: ALC21
Flexible exhaust hose
Exhaust with integral silencer

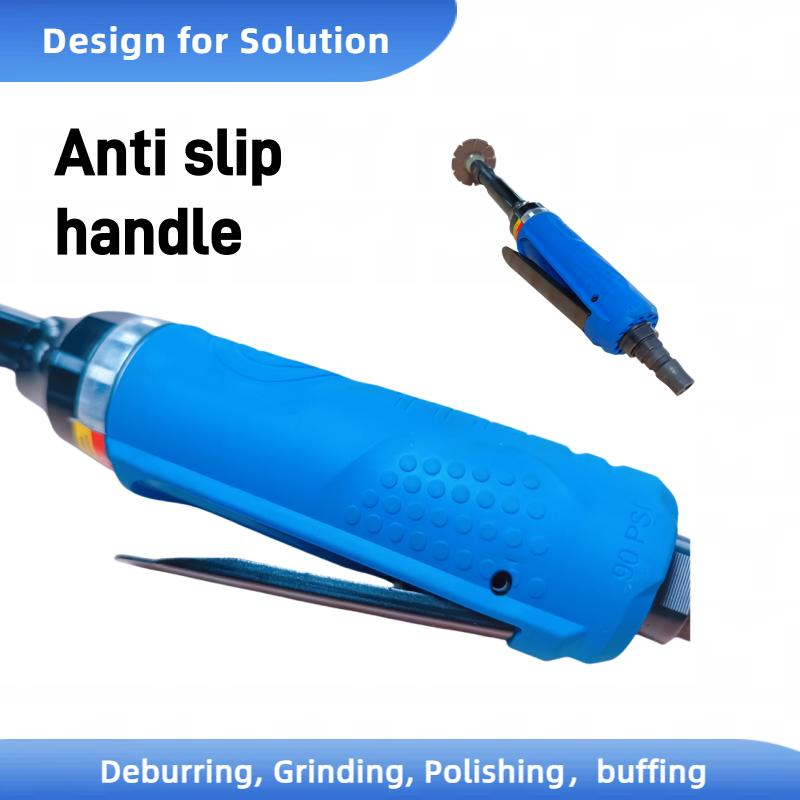

Modern design and ergonomically shaped grip
Extremely quiet and portable
Resilient bearing
Governor control for constant speed under load and low air consumption
Working for grinding with non-woven products and polishing discs

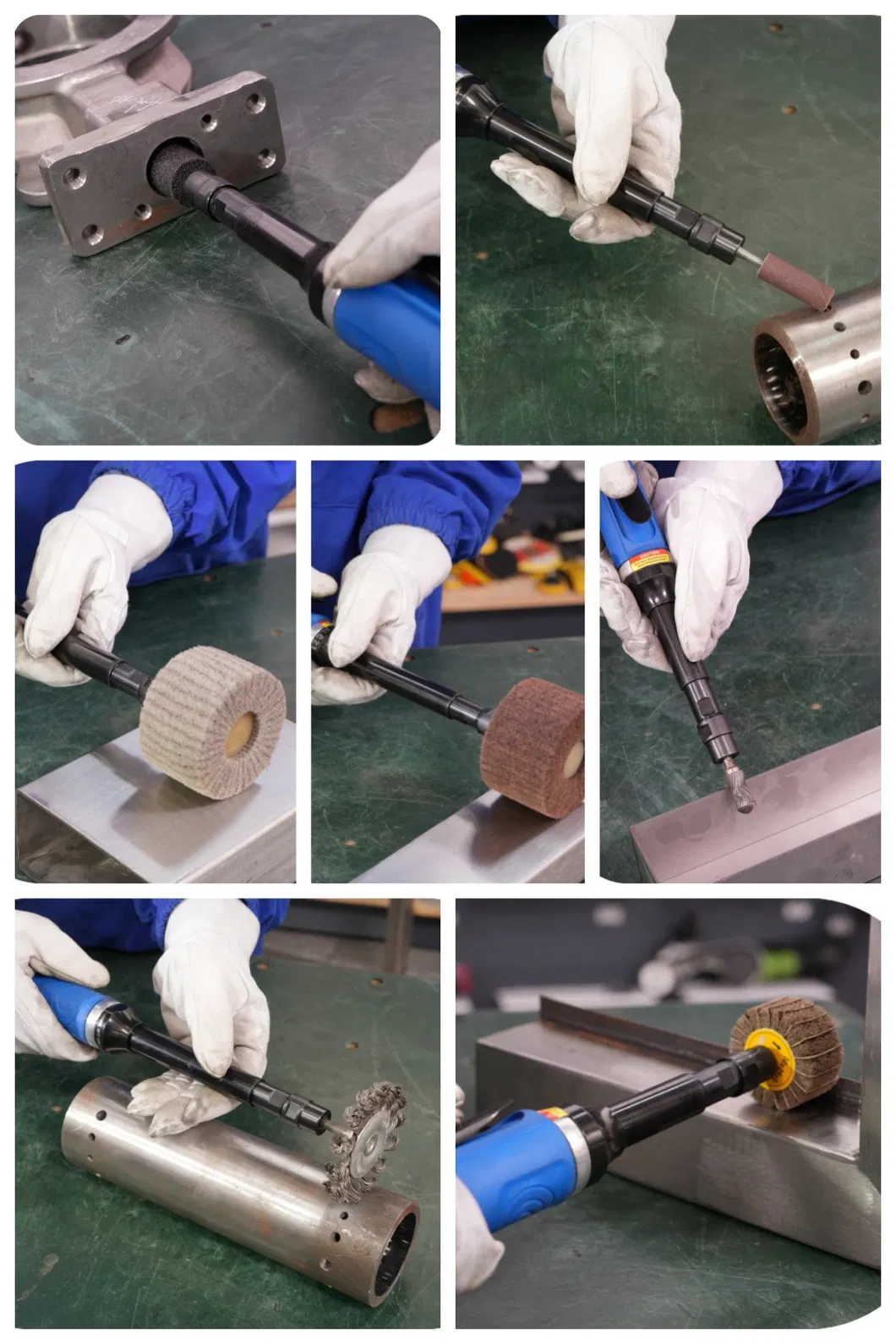

Applications
Engineering, foundries, tool and patternmaking, aircraft construction, aerospace and car industry.
Fine milling, grinding, engraving and polishing, especially for tool and patternmaking, aircraft construction.
Grinding and polishing with the new non-woven nylon abrasives, flap brushes, cleaning brushes, unitized wheels, discs and mounted points, bobs and polishing buffs.

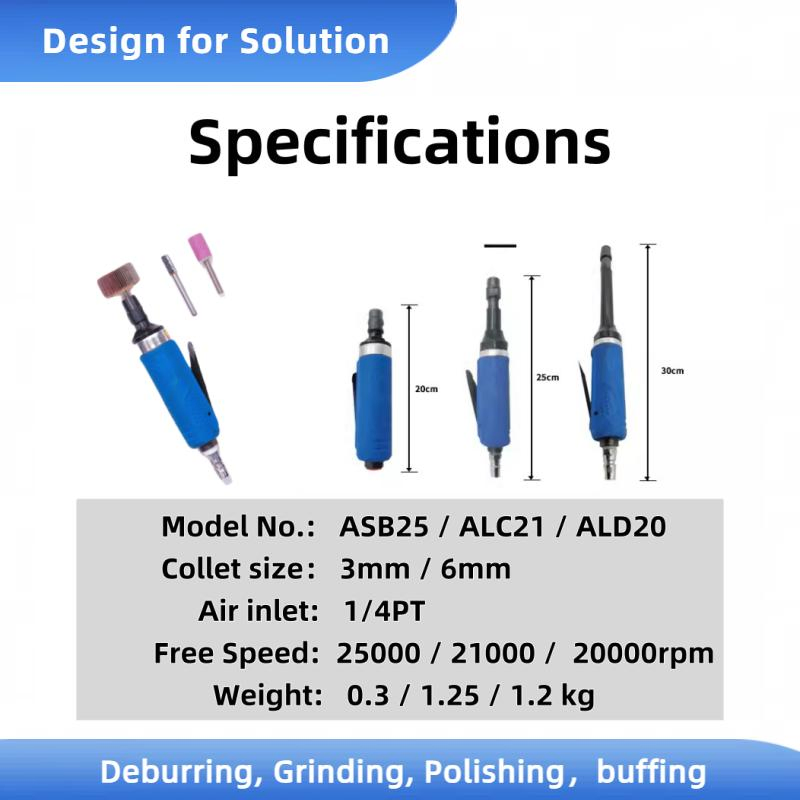

ALC21 Technical Specifications
Product Name
Pneumatic straight grinder
Model No.
ALC21
Order No.
500050
Collet Capacity
1/4"(6mm) and 1/8"(3mm)
Air consumption
430L/min / 15cfm
Free Speed
21000rpm
Weight
1.25kg
Size in length
250mm
Exhaust position
Front Exhaust
With regulator
With Airflow regulator
ASB25 Specifications
Product Name
Pneumatic straight grinder
Model No.
ASB25
Order No.
500152
Collet Capacity
1/4"(6mm) and 1/8"(3mm)
Air consumption
15CFM / 430L/min
Free Speed
25000rpm
Weight
0.3kg
Size in length
200mm
Exhaust position
Front Exhaust
With regulator
With Airflow regulator
ALD20 Specifications
Product Name
Pneumatic straight grinder
Model No.
ALD20
Order No.
500035
Collet Capacity
1/4"(6mm) and 1/8"(3mm)
Air consumption
10.6CFM / 300L/min
Free Speed
20000rpm
Weight
1.2kg
Size in length
300mm
Exhaust position
Front Exhaust
With regulator
With Airflow regulator
ASA70 Specifications
Product Name
Micro straight grinder
Model No.
ASA70
Order No.
500075
Collet Capacity
1/8"(3mm)
Air consumption
6 cfm / 170L/min
Free Speed
70000rpm
Weight
0.25kg
Size in length
-
Exhaust position
Rear Exhaust
With regulator
With Airflow regulator
ASD5 Specifications
Product Name
Pneumatic high torque straight grinder
Model No.
ASD5
Order No.
500012
Collet Capacity
6mm(1/4")
Air consumption
10.6cfm / 300L/min
Free Speed
4500rpm
Weight
0.73kg
Size in length
300mm
Exhaust position
Rear Exhaust
With regulator
With Airflow regulator

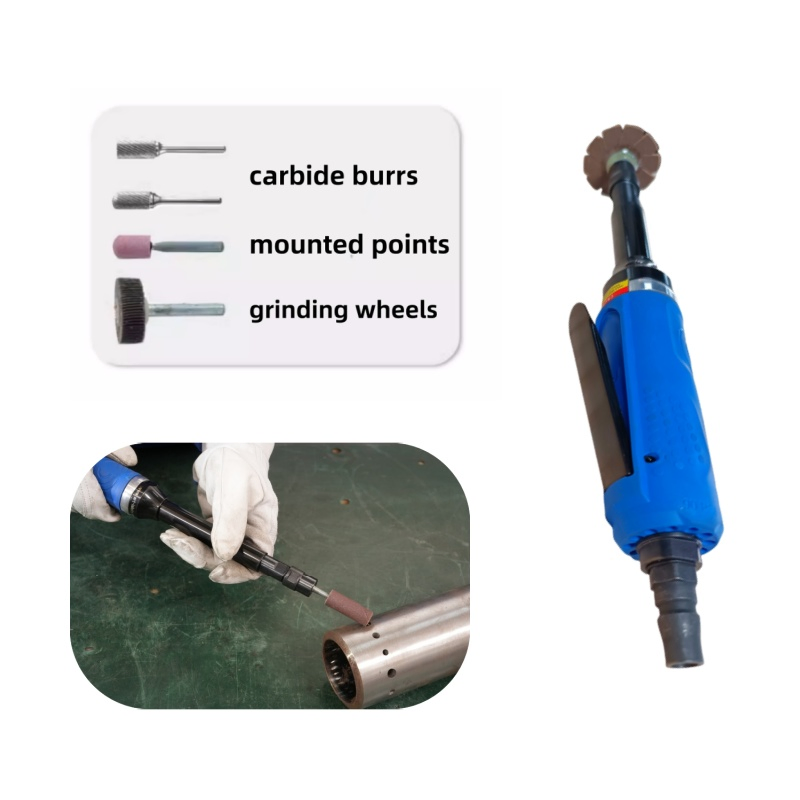

Abrasive
Flapwheels, Grinding wheels, brushed wheels
Application

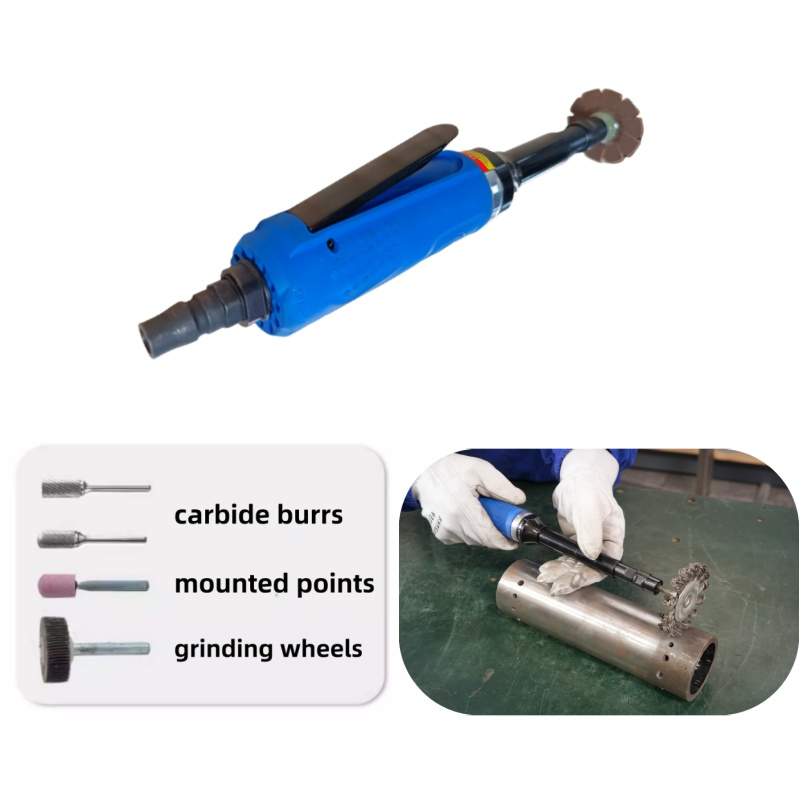

Match Multiple Abrasives
Carbide burrs
Mounted points
Grinding wheels
Grinding Brush
Sandpaper
Functions
Holes & surface treatment
Deburring
Grinding
Rust remove
Brushes grinding
Industry Use
Pump, Casting & Forging grinding
Stamping grinding & Stainless steel polishing
Tube & Tank grinding
Aviation grinding & Hydro generator grinding
Turbo machinery maintenance
Integrated die casting grinding

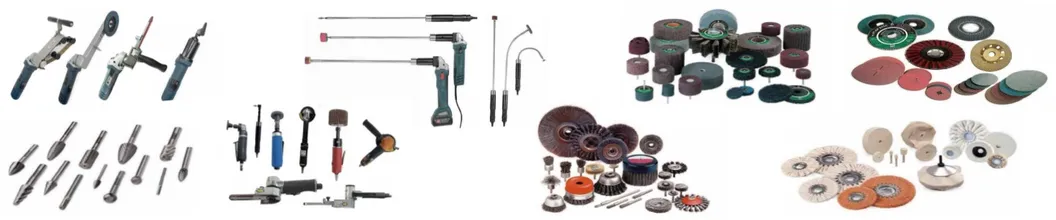

Our Products
We supply grinding and polishing related products, including angle grinders, straight grinders, flexible shaft tools, Mini-Random Orbital Sander, Belt Sander, chamfering tools, Reciprocating Electric file, brushed grinding tools and all kinds of abrasives, such as carbide burrs, grinding wheel, cutting wheel, sanding belt, sanding paper, sanding disc and flap wheel etc.
Our Product Application Widely
Our products are widely used in industrial manufacturing fields, including automobiles, aviation industry, power station, petrochemical machinery, fluid machinery, medical equipment, food processing equipment, biopharmaceuticals, metal product processing, automation equipment, etc.
Packaging & Shipping
Our Advantages
FAQ
Q
What materials can be worked on using this pneumatic straight die grinder?
This tool is highly versatile and specifically engineered for deburring, grinding, and polishing metals, steel, casting parts, and various other tough surfaces across industrial fabrication applications.
Q
How does the built-in governor control benefit operations?
The integrated governor control maintains a constant rotational speed even when the grinder is running under heavy loads. This ensures consistent finishing results while keeping the air consumption highly efficient.
Q
Can I use multiple types of abrasives with these straight grinders?
Yes, our straight grinders are compatible with various abrasives including carbide burrs, mounted points, grinding wheels, brushed wheels, non-woven nylon products, and sandpaper.
Q
What are the standard collet capacities available for these models?
Standard models like the ALC21 support both 1/4" (6mm) and 1/8" (3mm) collets, providing flexibility to fit a wide range of standard industrial grinding and engraving accessories.
Q
What exhaust type do these pneumatic tools feature?
Most models are equipped with a front exhaust configuration featuring an integral silencer. This reduces working noise, increases portability, and keeps air flow directed away from the workspace.
Q
What are the recommended air pressure and supply specifications?
The recommended operating air pressure is 90 psi (pounds per square inch). Ensure a clean, regulated, and lubricated air supply to maximize the lifetime and performance of the grinder.
